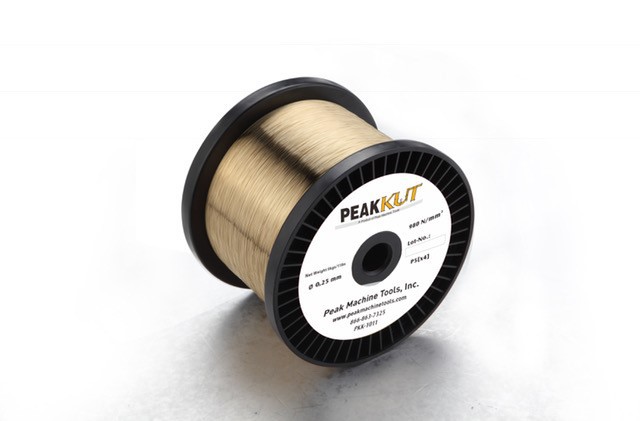

Part #: PKK-1244
| Wire Diameter | .012" / .30mm |
| Spool Size / Weight | |
| Spools Per Box | 1 |
| Color | Gold |
| Material | Brass |
| Hardness | Hard |
Price Per Box:
$382.00
Price Per Unit (1 per box):
$382.00
| Hardness | Tensile Strength | Material | Elongation | Weight (KG) | Weight (LB) |
|---|---|---|---|---|---|
| 980N/mm2 | 980MPa | CuZn37 | 20% IACS | 20 | 44 |
Spool Size
Measurement Diagram
| Length L (in.) | Length L (mm) | Outer Diameter D (In.) | Outer Diameter D (MM) | Inner Diameter h (IN) | Inner Diameter h (MM) |
|---|---|---|---|---|---|
| 5.51 | 140 | 9.84 | 250 | 1.34 | 34 |
